Introduction: Why the Glue Matters as Much as the Wood
Mass timber is often celebrated as one of the most promising materials for lower-carbon construction. It is renewable, strong for its weight, prefabrication-friendly, and capable of storing biogenic carbon for decades when used in buildings. Yet there is a quiet contradiction at the heart of many engineered wood products: the wood may be renewable, but the bonding systems that hold it together have often depended on synthetic, fossil-derived resins. Cross-laminated timber, plywood, laminated veneer lumber, particleboard, and glulam all rely on adhesive performance. If the adhesive is toxic, carbon-intensive, difficult to recycle, or vulnerable to moisture, the sustainability story of engineered wood becomes incomplete.
This article examines a new generation of fully bio-based wood bonding, centered on a 2025 Aalto University–linked breakthrough that uses cellulose dissolved in the ionic liquid 1-ethyl-3-methylimidazolium acetate, or [emim][OAc], as the bonding agent. The core idea is elegant: instead of attaching wood pieces with an external petrochemical resin, dissolve cellulose, apply it to wood, allow it to infiltrate the wood’s cellular structure, then regenerate it in water so the joint becomes a dense, interlocked cellulose network. The uploaded source material describes this as a fully bio-based bonding technology that uses regenerated cellulose to form bonds stronger and more durable than the wood itself.
The significance is larger than a single laboratory result. Buildings and construction remain a major climate challenge: UNEP’s 2024/2025 Global Status Report states that the sector consumes 32% of global energy and contributes 34% of global CO₂ emissions, while cement and steel alone account for 18% of global emissions and are major contributors to construction waste. If mass timber is to scale as a serious alternative to high-emission structural materials, its weakest sustainability links must be addressed. Adhesives are one of those links.
The purpose of this article is to trace the historical development of wood bonding, explain why formaldehyde-based and fossil-derived adhesives became dominant, analyze the current relevance of bio-based bonding in the context of mass timber growth and indoor air quality, explore practical applications through case studies, and assess future implications for construction, circularity, and materials science. The central argument is that regenerated-cellulose bonding is not merely a greener glue. It represents a shift from “wood plus adhesive” toward a more integrated material system: wood bonded with wood’s own primary polymer.
Historical Context: From Natural Glues to Synthetic Resins
Early Wood Bonding and the Logic of Engineered Wood
Wood bonding is ancient. Long before modern chemistry, craftspeople used animal glues, casein, blood albumin, starch, and plant-based gums to assemble furniture, musical instruments, tools, and architectural components. These adhesives were useful but limited. They were often sensitive to water, inconsistent in quality, biologically degradable under damp conditions, and poorly suited to mass production. They worked well for interior joinery but struggled in exterior or load-bearing structural applications.
The rise of engineered wood was driven by a practical need: to use forest resources more efficiently and produce larger, more predictable structural elements than solid timber alone could provide. Plywood solved one problem by cross-laminating veneers so the grain direction alternated, giving panels greater dimensional stability. Glued laminated timber, or glulam, made it possible to create beams and arches larger than the available trees. Later, cross-laminated timber, or CLT, extended the logic to massive wall, floor, and roof panels. Engineered wood is therefore a story of bonding: the adhesive is not a secondary detail but a structural component.
A 2021 review on protein-based adhesives notes that the Industrial Revolution and the rise of synthetic adhesives beginning in the 1930s became turning points because synthetic systems offered favorable economics, water resistance, and ease of use. Phenol-formaldehyde enabled durable exterior plywood, while urea-formaldehyde supported the expansion of lower-cost interior panels and furniture-grade composites.
The Synthetic Adhesive Era
The twentieth century established formaldehyde-based resins as the backbone of industrial wood products. Urea-formaldehyde, phenol-formaldehyde, melamine-formaldehyde, phenol-resorcinol-formaldehyde, and related systems became widely used because they cured reliably, bonded effectively, scaled industrially, and offered predictable performance. These advantages mattered. Structural bonding is safety-critical. A floor panel, beam, or wall assembly cannot depend on a romantic idea of naturalness; it must survive load, humidity, thermal cycling, manufacturing variability, and decades of service.
Phenol-formaldehyde became associated with exterior-grade products because it generally provides better water resistance and lower formaldehyde emissions than urea-formaldehyde systems. EPA guidance notes that softwood plywood and oriented strand board for exterior construction commonly contain phenol-formaldehyde resin, while pressed wood products made with urea-formaldehyde resins have historically been important indoor formaldehyde sources.
Yet the advantages of synthetic resins created a long-term sustainability problem. Many conventional adhesives are derived from petroleum or fossil gas feedstocks. They can complicate end-of-life recycling because they create hybrid materials: natural wood fibers joined by synthetic polymers. Some also raise health concerns because formaldehyde is a volatile compound associated with irritation and cancer risk at high or prolonged exposures. EPA states that formaldehyde exposure can irritate the skin, eyes, nose, and throat, and that high levels of exposure may cause some types of cancers.
The Rise of Bio-Based Adhesive Research
The modern search for bio-based adhesives has been motivated by three overlapping pressures: health regulations, decarbonization, and circular economy goals. Researchers have explored lignin, tannins, starch, soy protein, plant proteins, carbohydrates, furans, and bio-based polyurethanes. These materials are attractive because they can be renewable, abundant, and compatible with wood chemistry.
However, the historical difficulty has been performance. A review of bio-based wood adhesives summarizes the recurring tradeoffs: lignin adhesives can improve thermal properties and use paper industry by-products, but may suffer from low substitution levels, slow curing, high viscosity, and reactivity issues; starch adhesives can bond well and form films, but often have poor water resistance and storage stability; plant protein adhesives can achieve good strength but usually require pretreatment to improve water resistance. Another recent review of lignin- and tannin-based non-isocyanate polyurethane adhesives similarly notes that bio-based polymer adhesives often face poor water resistance, low reactivity, and cost barriers compared with conventional polyurethane systems.
This is why the regenerated-cellulose approach is historically notable. It does not merely substitute part of a petroleum adhesive with a bio-based filler. It changes the bonding mechanism. The uploaded report describes the method as a departure from petrochemical resins because the adhesive is cellulose itself, dissolved in an ionic liquid and regenerated within the wood structure.
The Science of Regenerated-Cellulose Wood Bonding
Cellulose as Both Material and Adhesive
Cellulose is the main structural polymer in wood. It gives wood much of its stiffness and strength through long molecular chains packed into microfibrils. The challenge is that cellulose is famously difficult to dissolve. Its chains form extensive intra- and intermolecular hydrogen bonds, along with van der Waals interactions, creating a highly ordered and resistant structure. A review on cellulose dissolution explains that physical dissolution requires disruption of these hydrogen bonds and related interactions; in ionic liquids, the anion interacts with cellulose hydroxyl groups while cations help stabilize the separated chains.

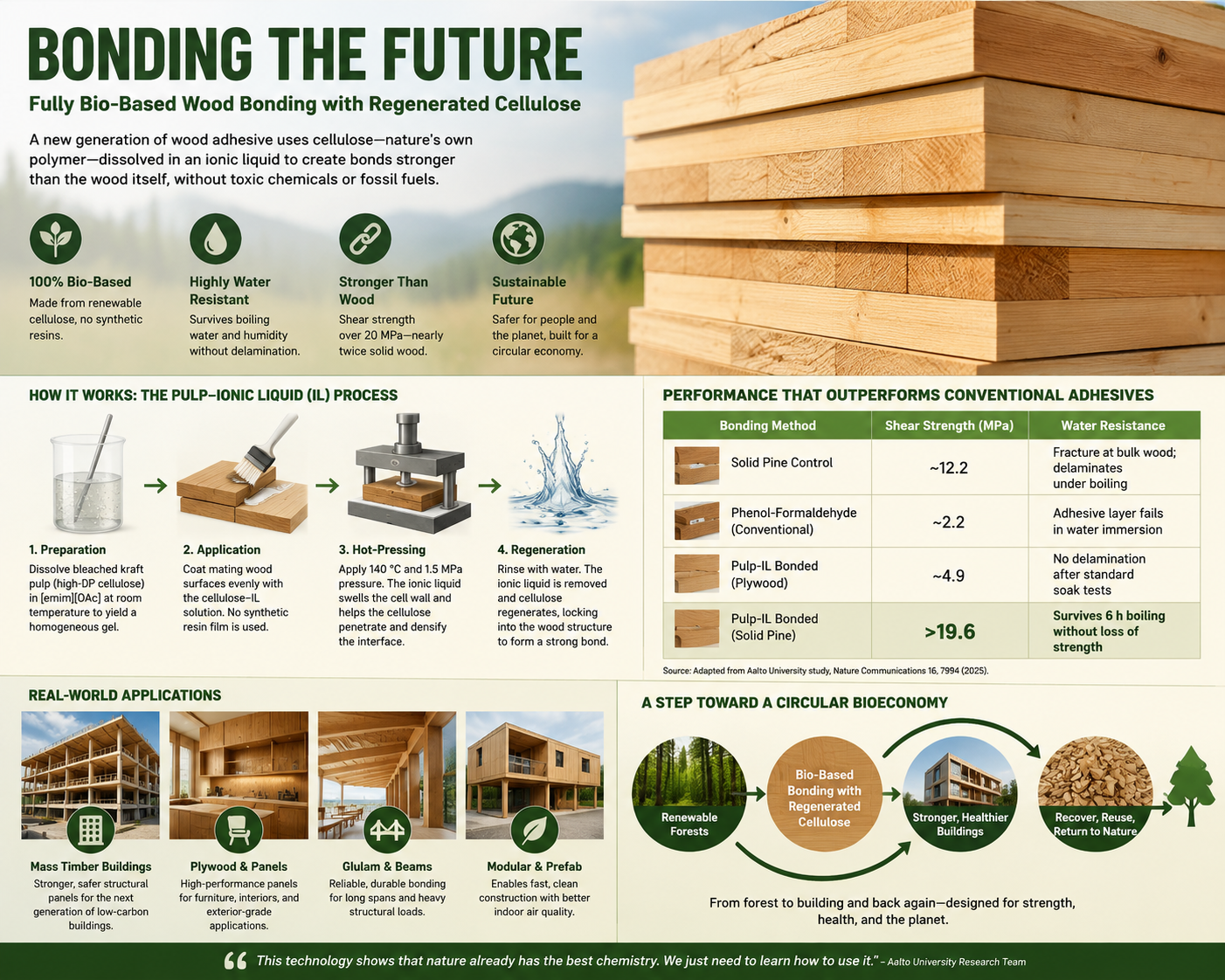

The Aalto-linked method uses [emim][OAc], an acetate-based ionic liquid, to dissolve cellulose pulp. The Nature Communications paper reports that freeze-dried bleached kraft pulp with a viscosity-average degree of polymerization of 2360 was dissolved in [emim][OAc] at 5 wt.% to form a cellulose-ionic-liquid solution. That solution was applied to Scots pine interfaces, hot-pressed at 1.5 MPa and 140 °C for 30 minutes, then rinsed with deionized water to remove the ionic liquid and regenerate cellulose at the bonding interface. The uploaded process table summarizes the same mechanism: prepare a pulp-IL solution, coat mating wood surfaces, hot-press, and regenerate the bond without a synthetic resin film.
Why Ionic Liquids Matter
An ionic liquid is a salt that is liquid at relatively low temperatures. In cellulose processing, certain ionic liquids are valuable because they can dissolve cellulose without derivatizing it. The acetate anion in [emim][OAc] is especially important because it can accept hydrogen bonds from cellulose hydroxyl groups, weakening the hydrogen-bonding network that keeps cellulose insoluble. Reviews of ionic-liquid cellulose chemistry identify imidazolium-based ionic liquids and acetate-containing systems as important solvents for cellulose dissolution and regeneration.
In the bonding process, the ionic liquid does more than dissolve pulp. It also interacts with the wood surface. The Nature paper explains that the method uses the solubility of both cellulose and native wood cell wall components in [emim][OAc]. The cellulose-IL solution swells the wood cell wall, introduces adhesive polymers into the bonding line, and enables the softened wood cells to be thermo-mechanically densified before regeneration in water.
This is crucial. Many adhesives bond wood by penetrating surface cavities and curing into a separate polymer network. Regenerated-cellulose bonding tries to merge the adhesive and the substrate. Dissolved cellulose enters lumina and interacts with swollen cell walls; when water removes the ionic liquid, cellulose regenerates as a network inside and between wood cells. The result is a multiscale bond: mechanical interlocking at the cellular level, polymer entanglement at the interface, and chemical compatibility because the adhesive is cellulose-based.
Mechanical Performance
The headline result is striking. The Nature Communications abstract reports a water-resistant bonded interface with shear strength over 20 MPa, nearly twice that of solid wood. The uploaded performance tables give similar comparative values: solid pine control around 12.2 MPa, phenol-formaldehyde plywood around 2.2 MPa in one comparison, pulp-IL bonded plywood around 4.9 MPa, and pulp-IL bonded solid pine greater than 19.6 MPa.
This matters because wood adhesives are usually judged by whether the wood fails before the bondline fails. If the surrounding wood breaks while the joint remains intact, the adhesive has effectively exceeded the substrate. In conventional structural adhesive testing, that is a strong sign of practical viability. The Aalto-linked work suggests that regenerated-cellulose bonding can produce a joint that is not merely “green enough” but mechanically exceptional.
Water Resistance: The Historic Bio-Adhesive Barrier
Water resistance has been the Achilles’ heel of many bio-based adhesives. Starch, proteins, and many carbohydrate-based systems are hydrophilic; water can plasticize them, weaken hydrogen bonding, swell the matrix, and reduce bond strength. This is why phenolic and melamine systems retained dominance in structural and exterior applications.
The regenerated-cellulose method is notable because it performs strongly under wet conditions. The uploaded materials report that pulp-IL bonded solid pine survives six hours of boiling without loss of strength or delamination, while the performance table contrasts this with solid pine control delamination and phenol-formaldehyde adhesive failure under water immersion in the stated comparison. The Nature paper similarly emphasizes that the multiscale bonded interface is water resistant and outperforms many existing methods.
The likely reason is architectural rather than magical. Regenerated cellulose does not simply form a surface film. It fills lumina, interacts with the cell wall, and becomes part of a densified, interlocked region. Water may still interact with cellulose, but the network’s physical entanglement and mechanical integration make the joint far more resistant to catastrophic delamination than a weak hydrophilic adhesive layer.
Current Relevance: Why This Technology Matters Now
Construction’s Carbon Burden
The timing of this technology is important because construction is under intense pressure to reduce embodied carbon. Operational emissions from buildings remain significant, but as grids decarbonize and energy codes improve, the carbon embodied in materials becomes more visible. UNEP’s 2024/2025 report states that buildings and construction account for 32% of global energy use and 34% of global CO₂ emissions, and that the sector remains off track for Paris-aligned decarbonization.
Mass timber is relevant because it can substitute for some steel and concrete in structural systems, reduce construction weight, speed assembly, and store carbon in long-lived products. But the environmental case depends on sustainable forestry, efficient manufacturing, responsible design, and circular end-of-life pathways. Adhesives influence all of these. A fossil-derived adhesive adds embodied carbon, may limit recyclability, and can undermine claims of material purity.
Growth of Mass Timber
Mass timber is no longer a niche curiosity. WoodWorks reports that 2,746 multifamily, commercial, or institutional mass timber projects were in progress or built in the United States as of March 2026. Code pathways have also expanded. WoodWorks notes that the 2021 and 2024 International Building Code include Type IV-A, IV-B, and IV-C construction categories allowing mass timber or noncombustible materials in buildings up to 18, 12, and 9 stories, respectively. The 2024 IBC also expanded exposed mass timber allowances in Type IV-B construction from 20% ceiling and integral beam exposure under the 2021 IBC to 100%.
Market forecasts show similar momentum. Grand View Research reported in May 2026 that the global cross-laminated timber market is expected to reach USD 5.7 billion by 2033, with a projected 16.1% compound annual growth rate from 2026 to 2033. It also reported that adhesive-bonded CLT accounted for 88.0% of revenue share in 2025. The importance of that last figure is hard to overstate: if most CLT is adhesive-bonded, then adhesive chemistry is central to the environmental profile of the sector.
Indoor Air Quality and Regulation
The formaldehyde issue is not theoretical. EPA identifies pressed wood products made with urea-formaldehyde resins as significant indoor sources of formaldehyde, including particleboard, hardwood plywood paneling, and medium-density fiberboard. EPA also notes that formaldehyde can cause irritation and that homes with significant amounts of new pressed wood products can have levels greater than 0.3 ppm.
Regulation has tightened. EPA’s Formaldehyde Emission Standards for Composite Wood Products rule under TSCA Title VI covers hardwood plywood, MDF, and particleboard, with testing, certification, labeling, recordkeeping, and import requirements. EPA also proposed updates in February 2026 to incorporate newer consensus standards, including ISO 12460-2:2024 for small-scale chamber testing of formaldehyde release from wood-based panels.
This creates a practical incentive for no-added-formaldehyde and ultra-low-emitting systems. A regenerated-cellulose adhesive could help manufacturers move beyond compliance toward elimination of formaldehyde-based bonding in some product categories, provided performance, cost, and manufacturing integration can be proven at scale.
The Circular Economy Challenge
Mass timber’s future depends not only on how buildings are built, but also on how they are disassembled, reused, recycled, or biodegraded. A 2024 systematic review of life cycle sustainability assessment for mass timber notes that circular economy considerations remain underdeveloped in many studies and that future assessments need to address recycling, reuse, and end-of-life recovery of wooden materials.
Adhesives can either help or hinder circularity. Synthetic thermoset resins are difficult to reverse, separate, or recycle. A fully cellulose-based bonding system could create more homogeneous wood products, making mechanical recycling, biological degradation, or fiber recovery more plausible. The uploaded report frames this as a route toward mono-material, fully bio-based engineered wood that supports circular material lifecycles.
Practical Applications and Case Studies
Case Study 1: Pulp-IL Bonded Pine as a Structural Interface
The most direct case study is the Aalto-linked experiment itself. In the Nature Communications study, researchers dissolved high-degree-of-polymerization bleached kraft pulp in [emim][OAc], applied it to Scots pine, hot-pressed the assembly, and regenerated the cellulose by rinsing with water. The reported interface combined densified wood cell walls, regenerated cellulose in cell lumina, and close compatibility between regenerated cellulose and the wood cell wall.
From an engineering perspective, the important lesson is not only that the bond reached high strength. It is that the failure mode points toward substrate-level integration. A conventional adhesive layer can become a weak plane if it is brittle, poorly penetrated, or incompatible with wood movement. The cellulose-IL bond instead appears to convert the interface into a reinforced transition zone. The uploaded data report shear strength greater than 19.6 MPa for pulp-IL bonded solid pine and survival after six hours of boiling without delamination.
Practical implication: this technology could be valuable anywhere the bondline is structurally critical and moisture exposure is a risk. That includes laminated beams, solid wood panels, exterior-grade plywood, façade components, bridges, modular housing panels, and high-humidity interiors such as schools, pools, kitchens, and bathrooms. It may also support stronger joints in lower-grade or fast-grown timber, potentially increasing the usable value of plantation wood.
Case Study 2: Plywood and Panel Products
Plywood is a natural early target because its manufacturing already uses veneer layers, adhesive spreading, hot pressing, and performance testing. The uploaded tables compare pulp-IL bonded plywood at about 4.9 MPa with phenol-formaldehyde plywood at about 2.2 MPa in the stated test context, and note that pulp-IL plywood showed no delamination after standard soak tests.
If these results translate industrially, the implications are substantial. Interior plywood could reduce reliance on formaldehyde-emitting systems. Exterior or semi-exterior plywood could gain a bio-based route to wet durability. Furniture-grade panels could become more appealing for schools, hospitals, childcare centers, and residential interiors where indoor air quality and material transparency matter. In markets where “no added formaldehyde” claims are already important, a cellulose-only bonding approach would be easy to communicate: the adhesive is derived from the same kind of material as the wood.
The challenge is manufacturability. Plywood mills run at high speed and tight margins. Any new adhesive must match existing spread rates, press times, cure cycles, storage stability, and quality control systems. The Aalto process involves ionic-liquid handling and water rinsing, which are not standard in most plywood lines. The technology may therefore first appear in premium, specialty, or high-performance panels before commodity adoption.
Case Study 3: Cross-Laminated Timber and Mass Timber Buildings
CLT panels are built by stacking lumber layers crosswise and bonding them under pressure. A 2024 life cycle sustainability review describes CLT as layers of kiln-dried lumber arranged perpendicular to adjacent layers and bonded under pressure; it also notes that glulam uses thin laminates glued together with structural-strength adhesives. Because adhesive-bonded CLT dominates the market, bio-based structural bonding could affect a large share of future mass timber.
For CLT, regenerated-cellulose bonding could offer three advantages. First, it may reduce fossil-derived resin content. Second, it could improve end-of-life material homogeneity. Third, it may strengthen the sustainability argument for timber buildings in jurisdictions that demand environmental product declarations, low-emitting materials, and circular design strategies.
Real-world mass timber adoption is already accelerating. The WoodWorks database shows thousands of U.S. projects in progress or completed. In Europe, large mixed-use timber developments such as Stockholm’s Wood City have drawn attention for combining CLT, glulam, prefabrication, and lower-carbon urban development; reporting on the project describes faster construction and lower emissions claims relative to concrete construction in that development context.
The practical implication is that the market exists. The question is whether regenerated-cellulose bonding can be scaled into CLT production without sacrificing throughput, durability certification, fire performance, or cost. If it can, it could become a differentiating technology for mass timber manufacturers seeking low-toxicity, high-performance, circular products.
Case Study 4: Healthier Interior Products
Not every application needs structural strength above 20 MPa. Many interior products—MDF, particleboard, cabinetry, shelving, acoustic panels, wall systems, and furniture—are driven by cost, emissions, machinability, and appearance. EPA’s consumer guidance identifies composite wood products such as hardwood plywood, MDF, and particleboard as adhesive-bonded products used in furniture, cabinets, flooring, picture frames, and children’s toys.
A cellulose-based bonding approach could be especially compelling for interiors because the health and emissions benefit is easy to understand. Schools, hospitals, elder-care facilities, offices, and homes increasingly prioritize indoor environmental quality. A formaldehyde-free bond that is also bio-based could support green building certifications, procurement policies, and product declarations.
However, fiberboard applications may be more difficult than veneer or solid-wood lamination because the adhesive must distribute through particles or fibers rather than a simple interface. The viscosity, wetting behavior, recovery of ionic liquid, pressing schedule, and water-removal strategy would all need redesign. Still, if the chemistry can be adapted, the market potential is large.
Challenges and Limitations
Scaling Ionic Liquid Recovery
The most important technical and economic question is solvent recovery. Ionic liquids are often described as low-volatility and reusable, but they are not automatically low-cost or low-impact. A commercial process must recover [emim][OAc] efficiently, prevent contamination, manage water streams, and demonstrate that the solvent’s lifecycle impacts do not outweigh the benefits of avoiding petrochemical resins.
In the Aalto-linked process, water acts as an anti-solvent that regenerates cellulose while removing ionic liquid. That is elegant at laboratory scale. At industrial scale, the rinse water would become a process stream containing ionic liquid that must be separated, purified, and reused. The future viability of the technology may depend as much on separation engineering as on bonding science.
Press Time and Production Speed
The reported hot-pressing condition of 140 °C, 1.5 MPa, and 30 minutes is reasonable for research but potentially long for high-volume panel production. Industrial plywood, OSB, and particleboard lines are optimized around rapid throughput. A 30-minute press cycle could be acceptable for specialty structural components but would challenge commodity economics unless the process is shortened or moved into a different manufacturing model.
Future research will likely focus on improving cellulose concentration, controlling viscosity, accelerating infiltration, reducing press times, and integrating regeneration with continuous production. It may also explore whether partial drying, steam-assisted regeneration, vacuum cycles, or closed-loop washing can make the process more industrially practical.
Standards, Certification, and Long-Term Durability
Structural wood adhesives require extensive qualification. A new bonding system must pass not only dry and wet shear tests but also creep, fatigue, delamination, cyclic humidity, freeze-thaw, biological durability, fire exposure, and long-term aging tests. Building codes and product standards move cautiously because structural failures are unacceptable.
The 2021 and 2024 IBC provisions have opened new pathways for mass timber buildings, but product-level acceptance still depends on rigorous testing and certification. Regenerated-cellulose adhesives will need evidence across species, densities, surface preparations, panel thicknesses, and climate conditions. Performance in pine is promising, but spruce, birch, poplar, eucalyptus, bamboo, and mixed-species panels may behave differently.
Forest, Land, and Feedstock Questions
A fully bio-based adhesive is not automatically sustainable. The cellulose feedstock must come from responsibly managed forests, agricultural residues, recycled pulp, or other low-impact sources. If adoption increases demand for virgin pulp without sustainable sourcing, the environmental benefit could be weakened.
The strongest future case would use by-product cellulose, recycled cellulose, low-grade pulp, or residues from wood processing. That would align adhesive production with circular bioeconomy principles and reduce competition with other pulp markets.
Future Implications
Toward Wood-as-Adhesive Manufacturing
The most exciting implication is conceptual: engineered wood may shift from being a composite of wood and foreign resin to a family of wood-derived mono-materials. In such systems, cellulose, lignin, hemicellulose, and other wood polymers are not just passive constituents but active manufacturing tools. Adhesives, coatings, foams, films, and reinforcements could all be derived from the same biomass stream.
The Aalto-linked study describes a bonding interface made from micrometer-scale interlocked wood cell walls, an interconnecting regenerated-cellulose network, and a compatibilized interface between regenerated cellulose and wood cell wall. That is a blueprint for future wood processing: soften, rearrange, densify, regenerate, and lock into place.
Integration with Digital and Prefabricated Construction
Mass timber is already compatible with digital design, CNC fabrication, modular construction, and rapid on-site assembly. Bio-based bonding could strengthen that ecosystem. Imagine CLT and glulam products optimized not only for structural performance but also for disassembly, recyclability, indoor air quality, and carbon accounting. Digital material passports could record not only timber species and structural grade but also adhesive chemistry, solvent recovery rate, and end-of-life pathways.
This matters because circular construction requires information. If future buildings are material banks, designers and owners need to know what is inside each component. “Cellulose-bonded timber” would be simpler to document, classify, and recycle than wood bonded with proprietary fossil-derived thermosets.
Carbon Accounting and Biogenic Storage
The Nature paper notes projections that timber-based buildings could store up to 20 gigatons of carbon by 2050, citing prior research. This kind of projection depends on assumptions about sustainable harvesting, substitution effects, building lifetimes, and end-of-life scenarios. Bio-based adhesives do not solve those debates, but they can improve the material integrity of the argument. A mass timber beam bonded with cellulose rather than fossil-derived resin is closer to a pure biogenic carbon store.
Life cycle research will need to quantify the net benefit. The right question is not “Is bio-based better?” but “Under what conditions does this system reduce total climate, toxicity, and resource impacts?” A 2024 review of mass timber life cycle sustainability found that LCA, embodied carbon, biogenic carbon, and circular economy are central research themes, but also that more robust end-of-life and circularity analysis is needed.
Expert and Research Outlook
Current research suggests several likely directions. First, scientists will explore other ionic liquids and solvent systems that dissolve cellulose effectively but are cheaper, easier to recover, and less energy-intensive. Second, they will investigate feedstock flexibility: kraft pulp, recycled cotton, nanocellulose, microfibrillated cellulose, agricultural residues, and low-grade cellulose streams. Third, they will optimize the interface through molecular weight, cellulose concentration, press temperature, pressure, moisture content, and regeneration conditions.
The uploaded report notes that higher-degree-of-polymerization pulp forms a robust regenerated network, while lower-degree cellulose can penetrate differently and produce weaker interfaces. That insight points to a future design principle: adhesive performance can be tuned by cellulose molecular architecture, not merely by adding more resin.
Upcoming Challenges
Four challenges will shape the next decade.
First, cost: petroleum-derived adhesives are cheap because they are mature, scaled, and deeply embedded in supply chains. Regenerated-cellulose bonding must either compete directly or justify a premium through health, sustainability, certification, or performance advantages.
Second, process integration: factories will not adopt a technology that disrupts throughput unless the value proposition is strong. Closed-loop ionic liquid recovery and shortened press cycles will be decisive.
Third, regulation and standards: new adhesives need trusted test data and product approvals. Structural applications will take longer than furniture or specialty panels.
Fourth, sustainability verification: the technology must prove its own lifecycle benefits, including solvent production, solvent recovery, energy use, water use, pulp sourcing, and end-of-life behavior.
Conclusion: A New Bond for the Timber Age
Fully bio-based regenerated-cellulose wood bonding is a compelling answer to a hidden problem in sustainable construction. Mass timber promises lower-carbon buildings, faster assembly, and long-term carbon storage, but conventional engineered wood has often depended on fossil-derived adhesives and formaldehyde chemistry. The Aalto-linked cellulose-ionic-liquid approach offers a different model: dissolve cellulose, use it to infiltrate and compatibilize the wood interface, then regenerate it into a dense, interlocked network that can outperform the wood itself.
Historically, natural adhesives lost ground because synthetic resins delivered superior durability, water resistance, cost, and production reliability. The new cellulose-IL technology is important because it challenges that old tradeoff. It suggests that a fully bio-based adhesive can be not only safer and more circular but also mechanically stronger and highly water resistant.
Its current relevance is clear. The construction sector remains a major emitter; mass timber is growing; codes are expanding; formaldehyde regulation continues to evolve; and circular economy expectations are rising. In this context, the adhesive becomes a strategic material, not an invisible commodity. A bio-based bond could improve carbon accounting, indoor air quality, product transparency, and end-of-life options.
The practical applications are broad: plywood, glulam, CLT, high-performance structural joints, healthy interiors, modular construction, and specialty panels. Yet the path to adoption is not automatic. The technology must overcome challenges in ionic-liquid recovery, press-cycle speed, cost, certification, lifecycle assessment, and feedstock sourcing.
Future research should focus on industrial process design, long-term durability, alternative solvents, recycled cellulose feedstocks, fire and moisture performance, and full cradle-to-grave assessment. The most promising future is not simply “greener glue,” but a new generation of engineered wood in which the adhesive, the structure, and the circular lifecycle are designed together. In that future, mass timber’s sustainability story becomes more coherent: wood bonded by cellulose, buildings that store carbon without toxic resin baggage, and materials designed from the beginning for strength, health, and return to the biosphere.
